Bucheon HEMIL Library / Korean architecture

1st Prize Winner / Korean architecture / Bucheon HEMIL Library

Bucheon HEMIL Library
\Korean architecture

Bucheon HEMIL Library /Architecture & Engineers Co. Ltd. / Park hyeong bae + E kchitects & Associates / Han Sang bum. Kim yong hwa


 Korean architecture
site plan

Area district : Central commercial area,
                    Fire prevention district,
                    District unit planned district.
Function : Culture & Assembly facility
               Eoucabonal research & Welfare facility ( same function with project city hall in Icheon )
Site area : 1,000,60m2
Building area : 729.53m2
Total floor area : 3,990.06m2
Landscaped area 200.97m2
Building coverage ratio: 72.91%
Floor area ratio : 314.60%
Stories : B1. 5FL
Structure : Reinforced concrete
Parking capacity : 21 cars
Ext. finish : Curtain wall, Aluminium louver, Ceramic panel

Bucheon HEMIL Library
Circumference situation
Bucheon HEMIL Library
Arrangement concept I
 Korean architecture Architecture Competition Annual 2006
Arrangement concept 2
Architecture Competition Annual 2006
Arrangement concept 3


 Beginning Point of Human Network in City...
 The project's site is located at a commercial town of Wonmigu, Bucheon City which shows typical urban scenes in which apartments are mixed whth shops. The site's small area makes us consider openness .In addition, a 35m road is close to a buffer zone. It is fortunate at parks around the site enables people to have a good view .

Bucheon HEMIL Library / Korean architecture
Frist floor plan

Bucheon HEMIL Library / Korean architecture
Second floor plan
Architecture Competition Annual 2006
Fifth floor plan
Zoning & Division, Connection & Flow, Change & Adaptation
The mass is arranged to ensure open spaces because the site is small compared with accepted programs. Therefore, The main entrance heads for a road on the northeast side of the site in order to maximize openness. In addition, an indoor atrium is planned by ensuring a square and dividing the mass. It introduces daylight and sky to the building which is likely to stuffy due to the narrow site. Accordingly, juveniles as well as the disabled will enjoy calmn and silence.

Korean architecture

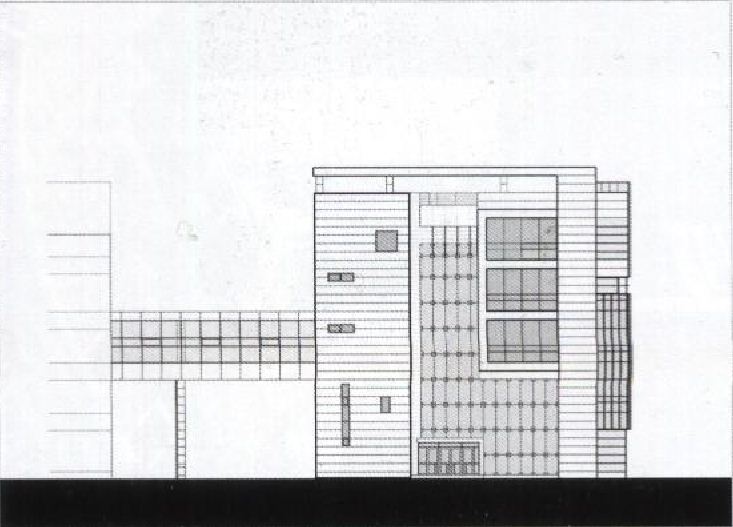

front elevation
Bucheon HEMIL Library / Korean architecture Architecture Competition Annual 2006
left elevation
Space Plan to Harmonize Visual Angle With Light
Corridors and rooms are arranged around the indoor atrium and decks between the spaces are used to link the inside with the outside. A roof garden plays the same role as a neighborhood park. The project is designed mainly for both the visually disabled and the adolescent. Therefore, the 1st, 2nd and 3rd floors contain spaces for the disabled owing to easy accessibility, while the 4th and 5th floors include spaces for the adolescent. A general data room, arranged on the 5th floors, has skylights in order to maintain comfortable condition. A sunken garden enhances daylight and ventilation of underground spaces. In addition, water spaces including an artificial waterfall at an entrance court provide visual and auditory motives.

Architecture Competition Annual 2006
section 1

Architecture Competition Annual 2006
section 2
Image as Open Community
Curtain walls are applied to the elevation for a transparent and open image. Vertical louvers are used to avoid a dry image and realize an intimate and dynamic image. In addition, the atrium is expected to integrate
spaces vertically, get rid of a barrier between the disabled and the nondisabled and realize one human network
